Event Finish

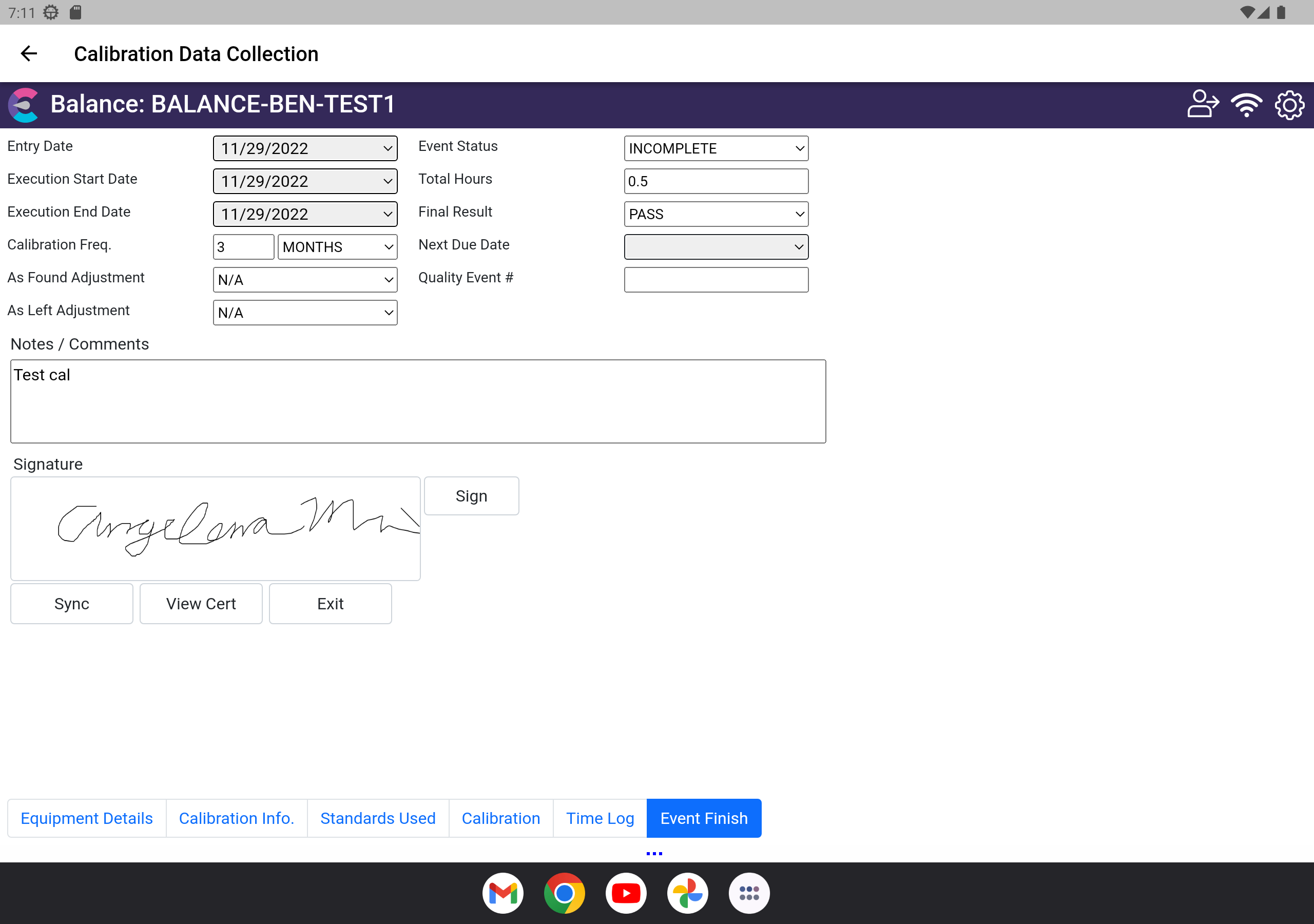

The Event Finish screen is the last presented before completing the Calibration Data Collection

Event Finish - Step 6

The last step of the calibration is for basic information to be entered/confirmed

Entry Date - Defaults to the current Date of the calibration entry
Execution Start Date - Defaults to the current Date that the calibration execution is started on
Execution End Date - Defaults to the current Date that the calibration execution is complete
Calibration Freq - Check/adjust the Calibration schedule frequency/interval
As Found Adjustment - Displays if the AF results were adjusted
As Left Adjustment - Displays if the AL results were adjusted
Event Status - Displays the current status of the event
Total Hours - Total Time the calibration takes to perform (this can be auto-calculated when the calibration is completed from the time log entries)
Final Result - Displays the final result of the event according to the Calibration Results tab
Next Due Date - Will display next due date (if current schedule in place)
Quality Event #
Notes/Comments - Any relevant notes about the calibration
Signature - Section to add the technician signature at the end of the event

When complete, press the 'Sync' button beneath the signature section. The calibration will be submitted to the IndySoft database when an online connection becomes available. The appropriate certificate of calibration will be created and the work order will be automatically completed.
