Add/Edit...Attributes...Attributes 1-8

These fields refer to the 8 text-based attribute fields that can be set up per attribute type, as defined in Step 2 of the Add/Edit...Attributes...Attribute Types wizard. There are 8 possible Attribute lists to populate per Attribute Type. For example, if you assigned an Attribute Type of 'Thread Plug,' you could set up 1 of your Text Attributes to specify a 'Direction' attribute. Next, you would use these lists to add classes 'CCW' and 'CW.' All values are specific to the selected company.

Add/Edit Attributes 1 - 8

To add to or manage the Attribute 1 - 8 list:

../Storage/indysoft-help-publication/bw_clip0202.png

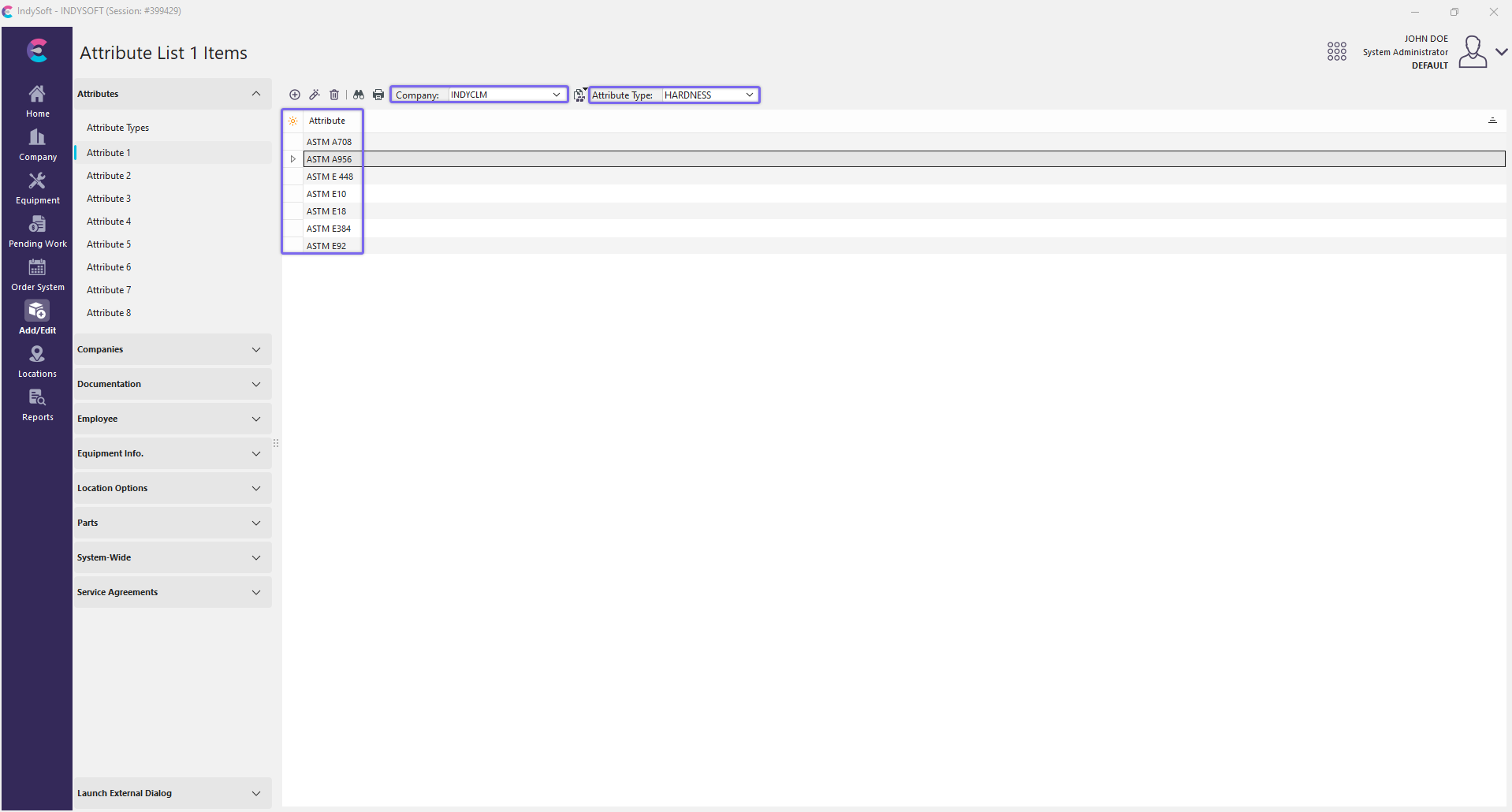

Add/Edit Attribute List Dialog Box

Be sure you're adding the Attribute List into the right 'Company' AND 'Attribute Type.' Click 'New Item' to add to the list or  'View/Edit Item.'

Add New Attribute List 1 Item

Type the new Attribute into the dialog box. Click 'OK,' and repeat as necessary.

Viewing Attribute 1 - 8 Lists

Click on (none) in the Attributes box to add an attribute from the drop-down list in the Edit Equipment Field. Or similarly, you can click on the current Attribute (i.e., CCW) to edit that Attribute or select a new one.

Edit Equipment Field - Direction

Attributes 1-8 - THREAD PLUG

Hyperlinks to be used in Layout Builder:

o!GAGES.ATTRIBUTE1!

o!GAGES.ATTRIBUTE2!

o!GAGES.ATTRIBUTE3!

o!GAGES.ATTRIBUTE4!

o!GAGES.ATTRIBUTE5!

o!GAGES.ATTRIBUTE6!

o!GAGES.SIZE1!

o!GAGES.SIZE2!

Productivity Tip

The Add/Edit Attribute List dialog box can be filtered and customized in many ways. See General Interface for more information.

Buttons and Icons are detailed here.
