Studies - Choosing Parts and Characteristics - Step 3 (Linearity)

Step 3
Linearity studies are based on several parts that represent the operating range of the gage. Each part is listed on a different screen (according to the number of parts specified in Step 1). Reference Value is a required field for each part. Press the 'Next' and 'Back' buttons to move between the parts. Only Part Numbers of that company are available when a Part Company is chosen. Only Characteristics of that Part Number are available when a Part Number is chosen.

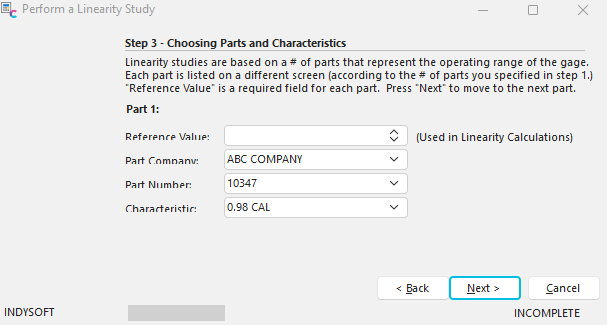

Step 3 - Choosing Parts and Characteristics |
