Attributes

With the addition of IndySoft Commercial Lab Management's expanded Attribute Types, users can now add as many text and numeric fields as they like. The Attributes can be viewed on the main screen as a Tab just like Test Points, History, Schedules and so on. This makes selecting the Attribute much easier with many more options.

To add a new Attribute Type, select "Add/Edit" from the main screen menu, then "Attribute Types."

Click the "Add New" icon  .

When the Attribute Type has been added, click "Next."

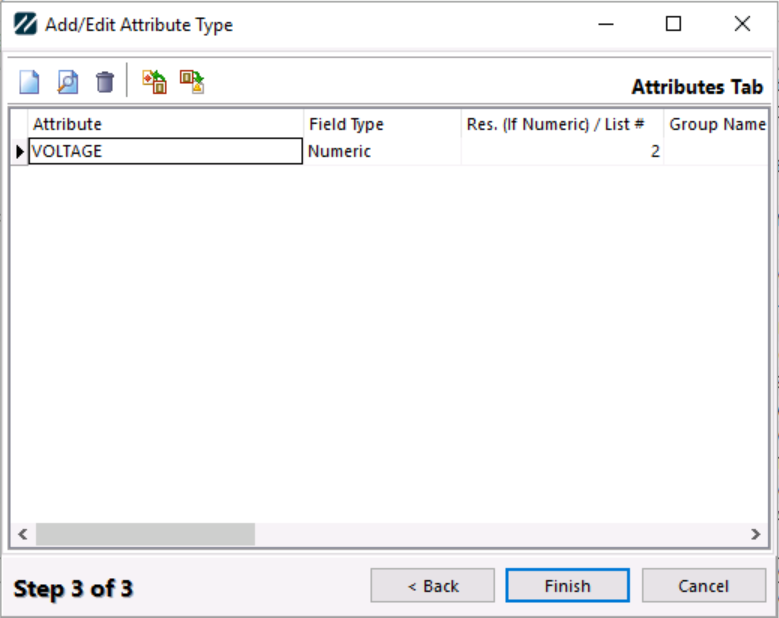

For each item you wish to use, check the Text or Numeric box to the left of the screen then add the information as you want it shown on the main screen in the fields to the right. Click "Next."

For each Attribute Type, click the "Add New" icon and enter the desired information.

When all the Attribute Types have been added, click "Finish" and return to the main screen.

To add values to each Attribute, select the Add / Edit -> Attributes

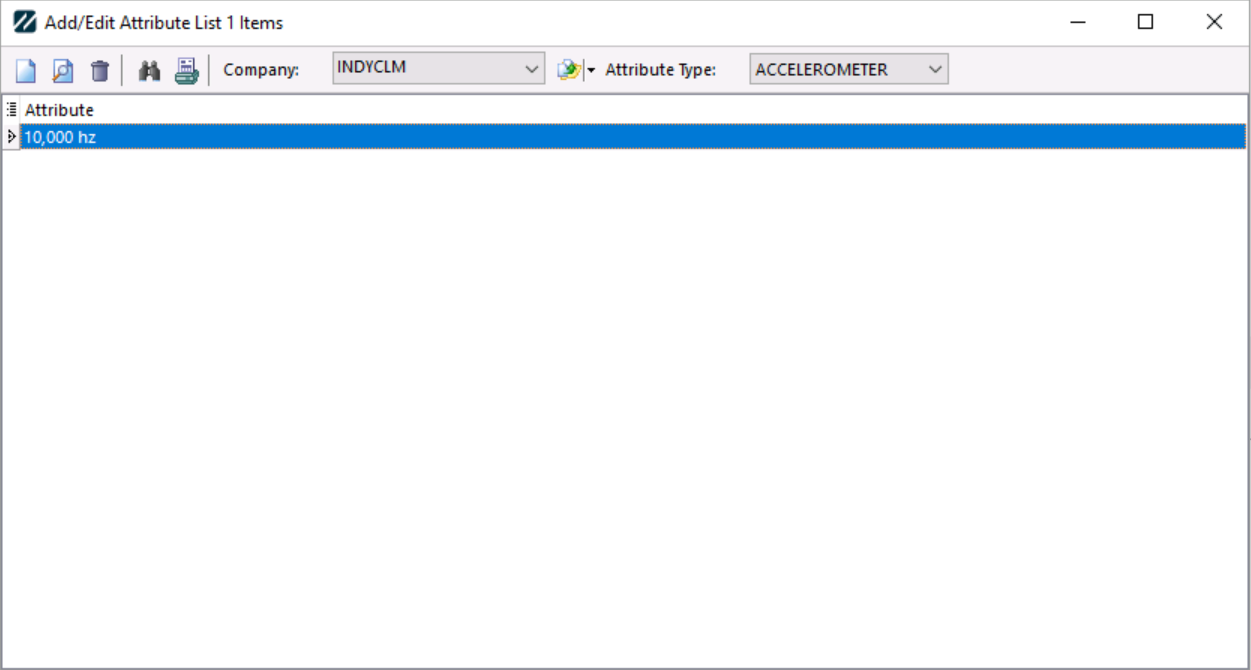

Select the Attribute number. This will open the following screen:

Attribute values are controlled by Company and Attribute Type. |
