Resulting Calibration Test Points

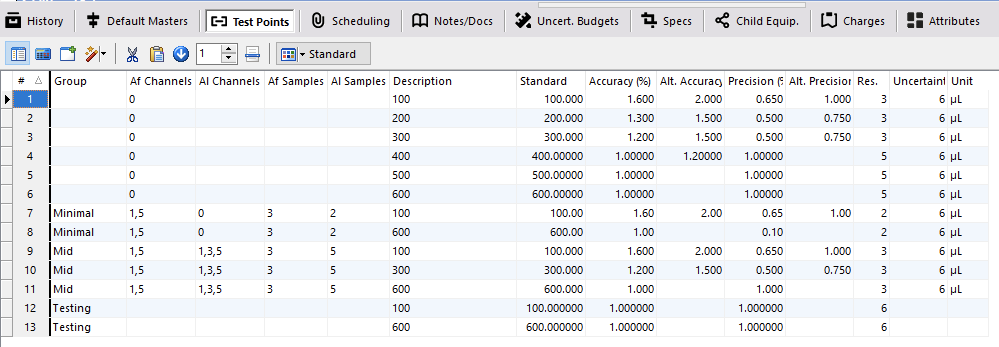

As discussed in Test Point Grid Setup, the final structure of the test points is different from the setup grid. Here we have several options for picking 100 to 600 microliters on a 5 channel pipette (in Pipette Method Setup).

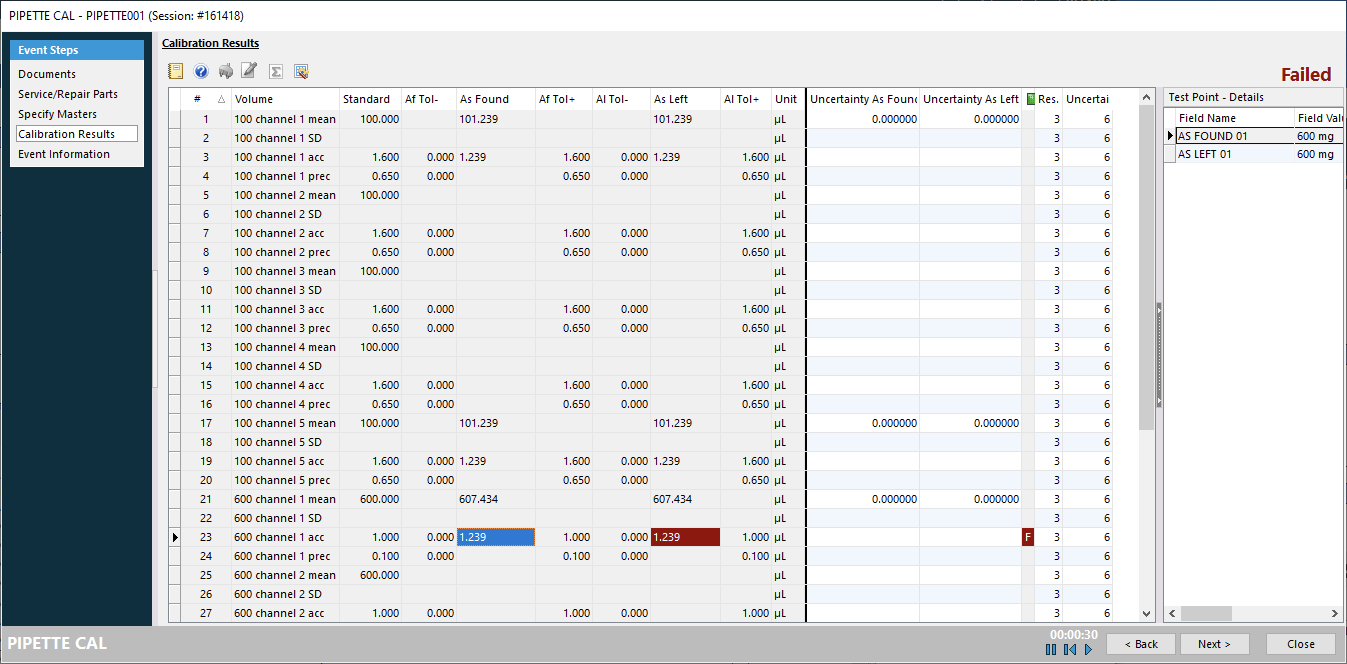

After running the Minimal group, we get the following:

A copy of each test point is made four times for each test point. One to record mean, one for standard deviation, one for accuracy, and one for precision. This is then copied once per channel. For any given test point, if you drag the right-hand slider over, you can see the individual AS FOUND and AS LEFT samples that generated the data. To understand how these are collapsed down into a more compact form on the certs, refer to Explanation of Pipette Certs.
